Strain Measurements

with optical access in attoDRY toploaders

strain cell stick.png

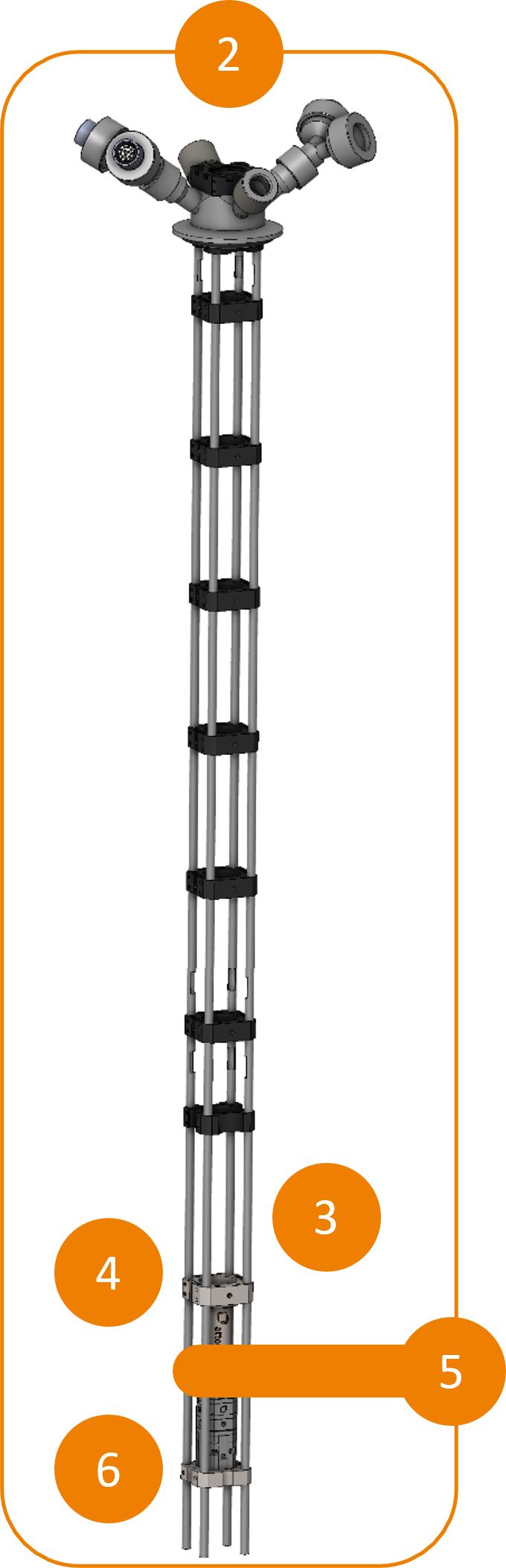

  1. Compatible with all attoDRY toploaders. T = 1.8K – 320K, 9T, 12T, 5/2/2T vector…
  2. Free-beam optical access to the sample
  3. High voltage wiring set to drive the cell and read out force + displacement
  4. Compatible with all attocube LT-APO apochromatic objectives (NA > 0.8)

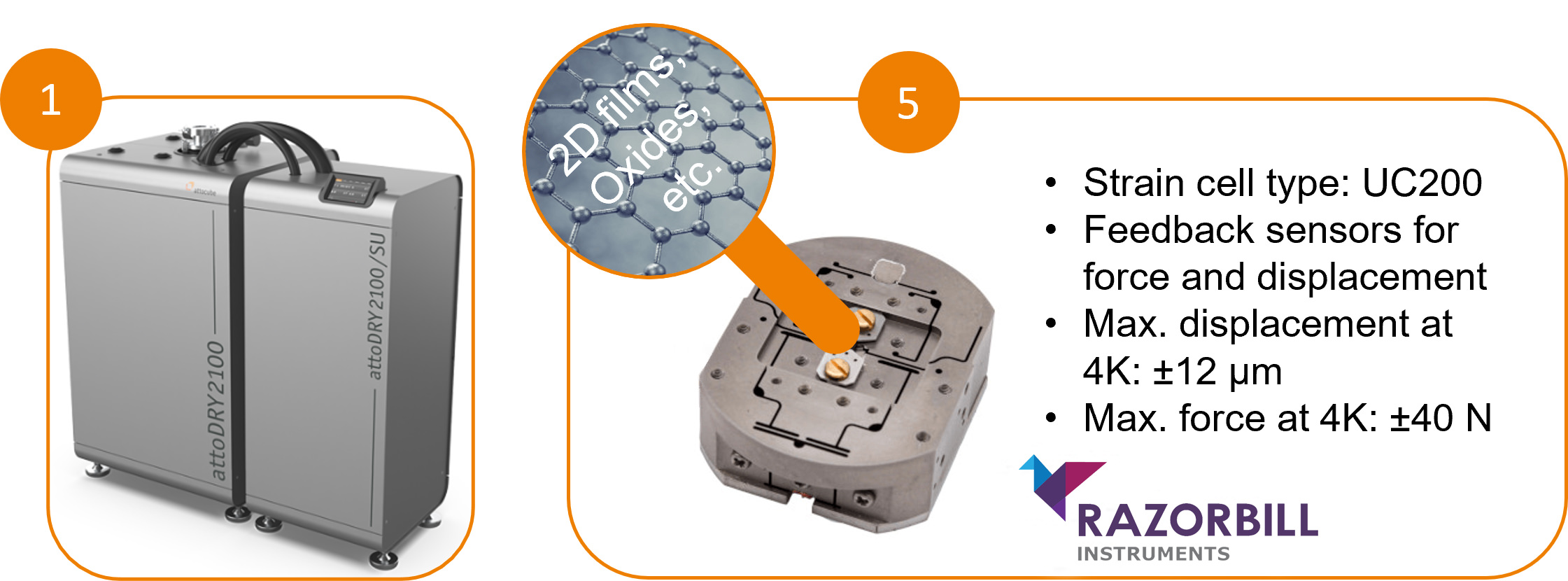

  5. Strain cell
  6. High-load nanopositioner set to center the sample in FOV and focus.

strain cell type.png



(*) Customer inspired setups: platform-type configurations, final experiment is implemented by the user.


Applications of strain measurements at cryogenic temperatures

  • phase transitions in 2D magnetic semiconductors, e.g. from antiferromagnetic to ferromagnetic
  • Lifshitz transition of 2-dimensional Fermi surfaces caused by structural changes of the crystal lattice
  • apply large anisotropic stresses to correlated electron materials
  • Probe quantum materials with uniaxial stress

Technology article: Strain cell with force and displacement sensor
Rev. Sci. Instrum. 90, 23904 (2019)

How to mount 2D materials on strain cells:
Sample mounting guide for unsupported 2D materials – Razorbill Instruments
